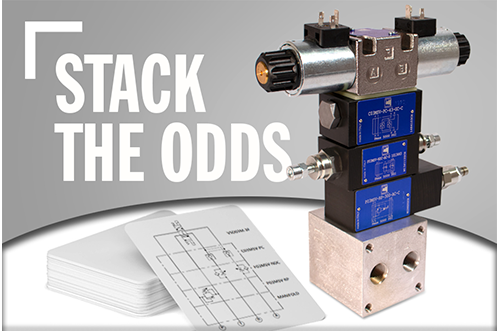

Modular stack valves allow for many circuit function components to be easily mounted in a very economical, no leak package. With all functions located in a single convenient space, adjustments can easily be made. Functions include checks, flow controls, pressure controls, load holding and solenoid operated blocking valves.

Check Valves

Available in D03 and D05 mounting patterns

Rated to 5000 PSI and up to 26 GPM

Pressure line or tank line circuits

Pressure Control Valves

Available in D03 and D05 mounting patterns

Rated to 5000 PSI and up to 26 GPM

Available in all work ports, to control desired pressure functions

Flow Control Valves

Available in D03 and D05 mounting patterns

Cast iron versions to 5000 PSI, aluminum versions to 3000 PSI

Meter IN and Meter Out Functions

Blocking Valves

Block flow when de-energized and will allow bi-directional flow when energized

Rated to 5000 PSI and Flows to 30 GPM

NFPA D03 and D05 mounting patterns

Load Holding

Rated to 3000 PSI Aluminum and 5000 PSI Cast Iron

Flow rates to 32 GPM

NFPA D03 and D05 mounting patterns
