Electronic Overload Relays: E100 & E300

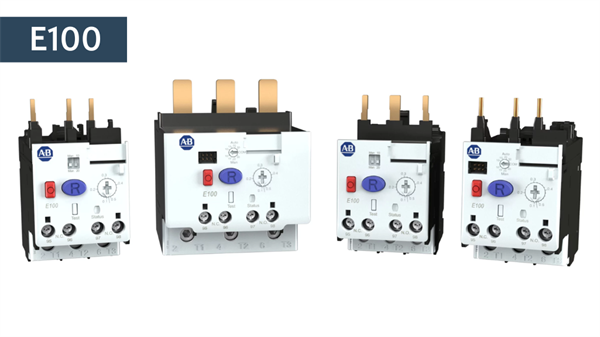

E100![NL2405-E100E300 NL2405-E100E300](/images/default-source/default-album/nl2405-e100e3008338a83bb5466d0890f9ff0000b1ecf4.png?sfvrsn=0&MaxWidth=600&MaxHeight=&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=8C37E4CE49F6524B84A89D4A26CC935A09D540CC)
The E100 Electronic Overload Relay is the next generation basic-tier electronic overload relay. It has enhanced features to better safeguard your motor protection investments, including increased accuracy and repeatability, a self-powered design with lower heat dissipation, and the certifications to comply with many applications. The E100 portfolio is available in two offerings: a Basic (Cat. No. 193-1EE) and Advanced (Cat. No. 193-1EF, 592-1EF) version, supporting both single- and three-phase operation in a single component. The Basic version allows adjustable trip current, manual trip reset, and limited trip class selection. The Advanced version offers the same adjustable trip current, manual and automatic trip reset, a larger selection of trip classes, and the ability to connect additional accessory modules. Features:
- Electronic overload detection
- Test and reset buttons
- Simple configuration
- Automatic (193/592-1EF only)/manual reset selection
- Selectable trip class
- RMS current sensing (50/60 Hz)
- Adjustable trip current
- External current transformer configurations for high-current applications
- Direct mounting for both IEC and NEMA contactors
- Pass-thru wiring option
The E100 relay lets you connect accessory modules, some of which interface through the front-mounted communication port. Accessories include:
- Ground fault/jam protection module (193/592-1EF only)
- Electronic remote indication display (ERID), with or without reset (193/592-1EF only)
- Remote reset solenoid
- External reset adapter
- Anti-tamper shield
- DIN Rail/Panel adapter

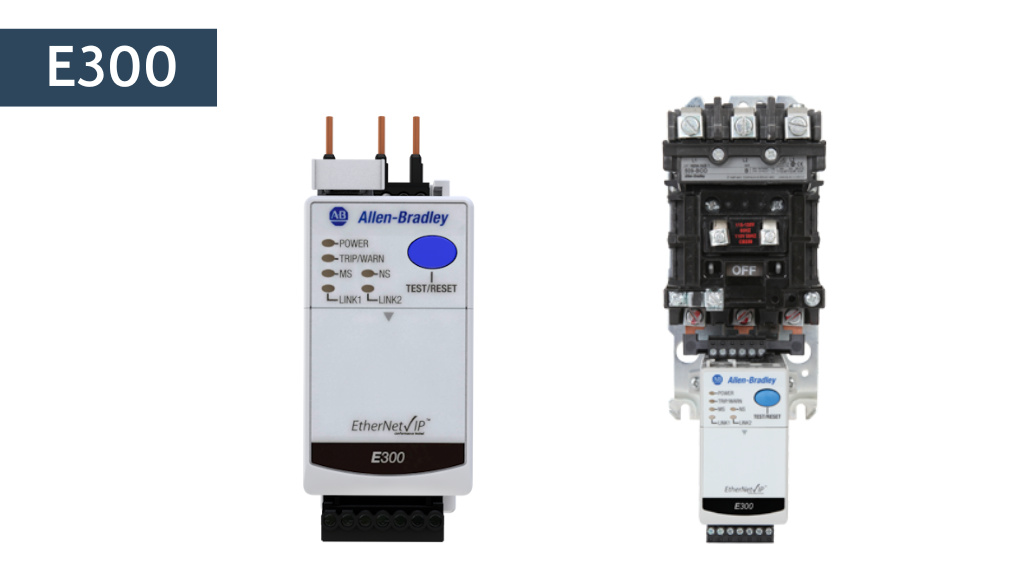

E300![NL2405-E100E300 (1) NL2405-E100E300 (1)](/images/default-source/default-album/nl2405-e100e300-(1).png?sfvrsn=0&MaxWidth=600&MaxHeight=&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=B8259F7B4DF26F0A78DA9FA3E3D9E8CC2364AC42)
The E300™ Electronic Overload Relay is the newest technology for overload protection. Its modular design, communication options, diagnostic information, simplified wiring, and integration into Logix technology make this the ideal overload for motor control applications in an automation system.
Benefits:
- Intelligent motor control (EtherNet/IP™ and DeviceNet™ enabled)
- Scalable solution
- Diagnostic Information
- Integrated I /O
- Adjust ablet rip cl ass 5…30
- Wide current range
- Test/Reset button
- Programmable trip and warning settings
- True RMS current/voltage sensing (50/60 Hz)
- Protection for single- and three-phase motors
